AP-11 Head
VAT not included. EU customers: applicable VAT will be calculated at checkout. US customers: taxes and duties will be assessed upon shipment.
AP-11
Pre-Order — Batch N2 — Ships late Q4 2026
This product is available for pre-order. Your order is confirmed immediately and ships as soon as production is complete. You'll receive a shipping notification by email.

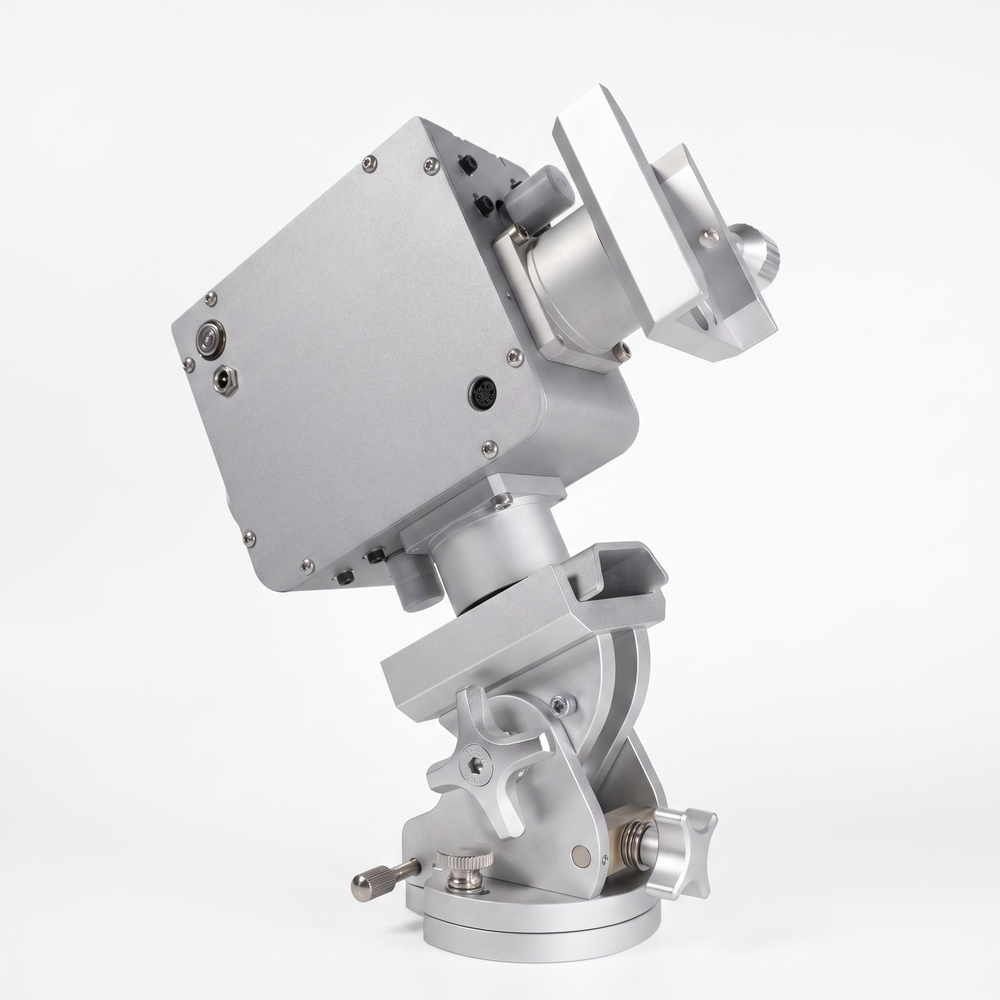

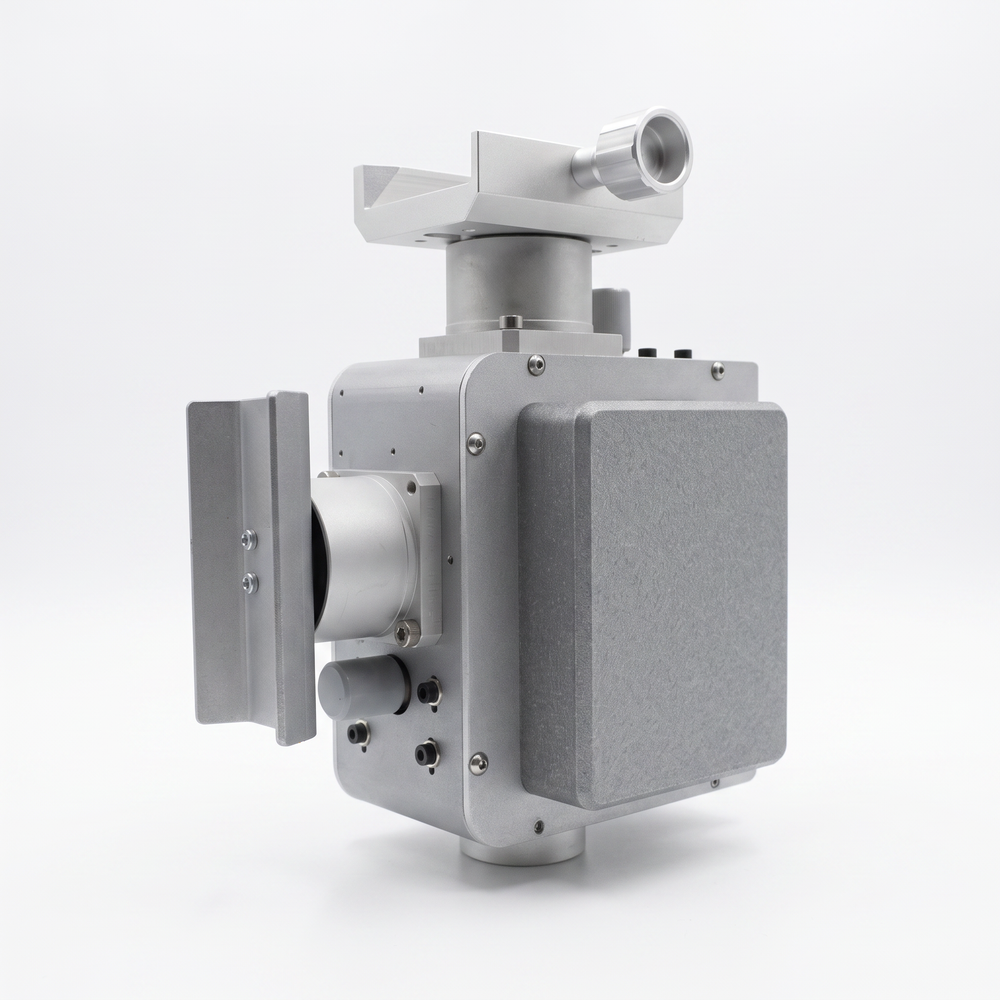

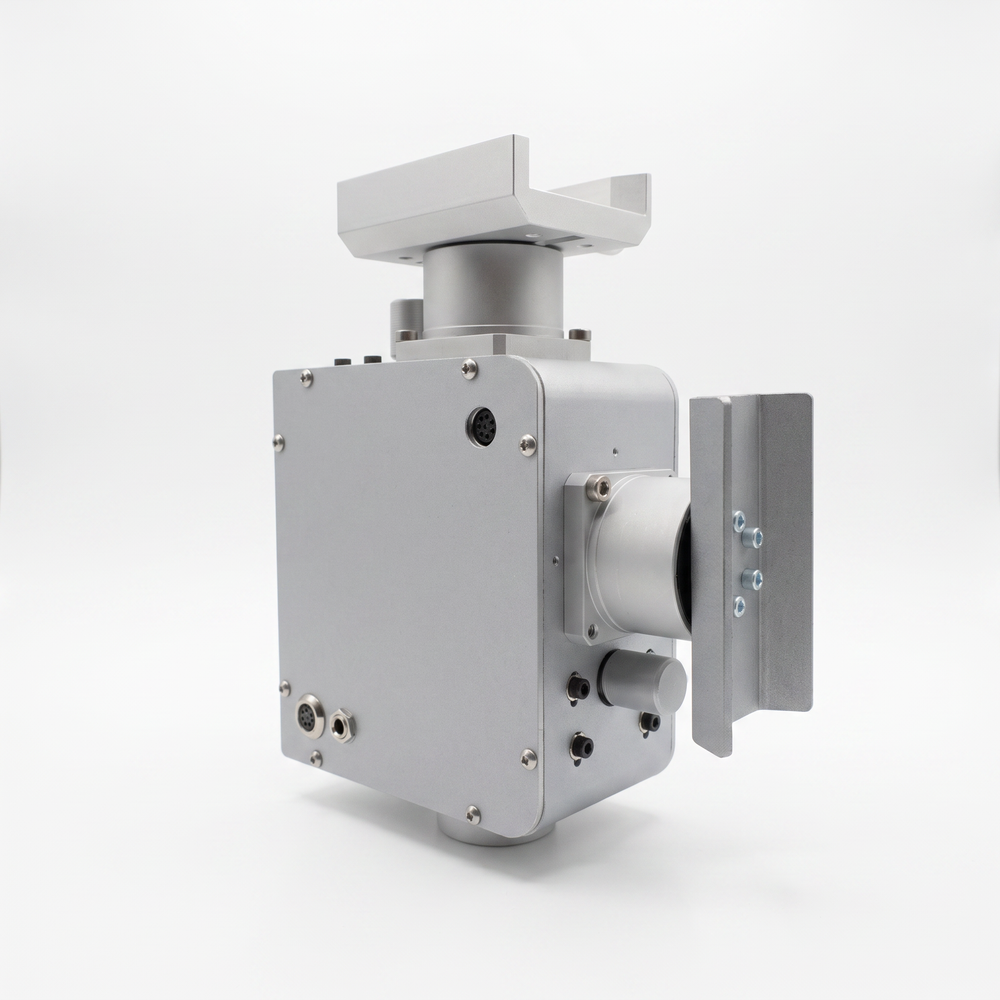

The AP-11 is a compact, lightweight equatorial mount designed from the ground up for portable astrophotography, combining precision mechanics, smart control, and a modular architecture in an exceptionally travel-friendly package.
With a payload capacity of up to 5 kg and a weight of just 1.6 kg without the wedge, the AP-11 is designed for compact astrophotography setups where portability and performance are equally important.
Both axes feature a high 1:375 reduction ratio and are driven by oversized NEMA 17 motors, providing a robust drive system specifically engineered for reliable tracking and precise motion control.
The AP-11 can be controlled through its dedicated iOS and Android app, giving you an intuitive interface to configure and operate the mount directly from your smartphone. For fast and accurate setup in the field, it's compatible with the optional Align Module, which provides a dedicated solution for polar alignment through N.I.N.A. TPPA or the AP-11 mobile app.
Expand the system
Rigid platform for equatorial operation.
Assisted polar alignment via N.I.N.A. TPPA or the app.
Standalone physical control in the field.
Specifications
| Feature | AP-11 |
|---|---|
| Weight | 1.6 kg (without wedge) |
| Payload | Up to 5 kg |
| Reduction ratio | 1:375, both axes |
| Motors | Oversized NEMA 17 |
| Control | iOS & Android app |
| Polar alignment | Optional Align Module |
Portable. Modular. Repairable. Built for astrophotography.
Expand the system
Wedge
Rigid platform for equatorial operation.
Align Module
Assisted polar alignment via N.I.N.A. TPPA or the app.
AP Controller
Standalone physical control in the field.
Specifications
Weight1.6 kg (without wedge)
PayloadUp to 5 kg
Reduction ratio1:375, both axes
MotorsOversized NEMA 17
ControliOS & Android app
Polar alignmentOptional Align Module
Portable. Modular. Repairable. Built for astrophotography.
